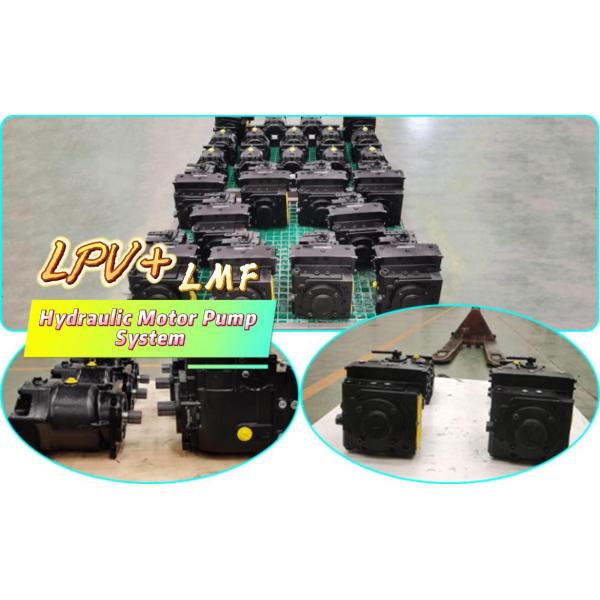

LPV110 Hydraulic Motor Pump System - Higher Efficiency & System
Solutions
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Efficiency and Precision: The Role of Hydraulic Motor Pump Systems
in Agriculture - Unveil the intricate mechanics of hydraulic motor
pump systems, the driving force behind enhanced agricultural
machinery. Discover how fluid power is harnessed to optimize
mechanical operations, emphasizing the harmonious interplay of
critical components, including hydraulic pumps, motors, and valves,
for unparalleled reliability and control over force and speed.
Specifications:
Hydraulic Motor Pump System technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic Motor Pump System notices:
Go beyond standard contamination control measures by implementing
advanced techniques like kidney loop filtration systems. These
systems continuously filter and purify hydraulic oil, enhancing its
cleanliness and extending its lifespan. You should also consider
dedicated off-line filtration units for comprehensive oil
maintenance.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized
soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long
does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is
also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control
system.Secondly, we will inspect the defective pump and motor, and
then respond according to the actual situation.
