Variable Displacement Axial Piston Pumps for High Efficiency &
Pressure

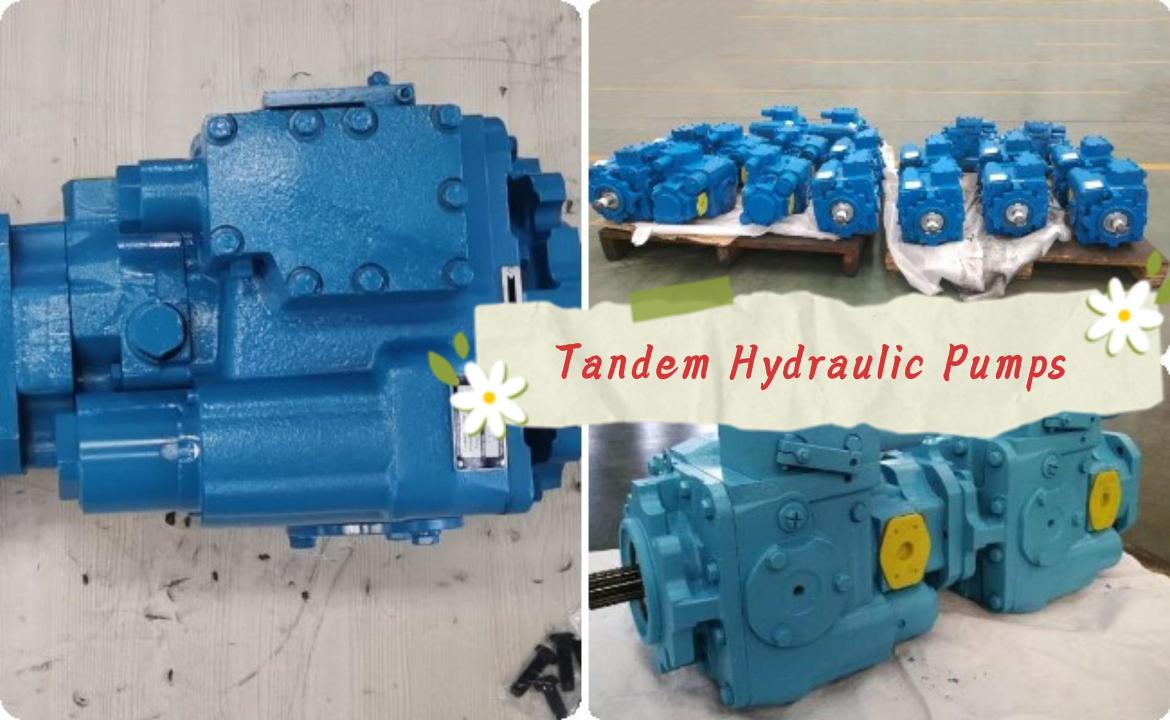

Tandem hydraulic pumps basic information:
A technical deep dive into the principles that enable tandem
hydraulic pumps to master flow rates and pressures, propelling them
to the forefront of hydraulic technology.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
| HPV hydraulic pump and HMF hydraulic motor series |
| Displacement | Max displacement | ml/r | 110+110 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 535.3 |
| Max output torque | Nm | 749 |
| Power | Continuous output power | KW | 149 |
| Max power | KW | 173 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be
quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer
needs;
Notices:
Follow the correct startup and shutdown procedures for the
hydraulic system.
Regularly check the oil level in the hydraulic oil tank and ensure
it is at the appropriate level.
Avoid prolonged operation of the hydraulic system in
high-temperature environments to prevent excessive oil temperature.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are
complex devices that offer multiple flow rates and pressures.
Before using, it's crucial to understand the operating parameters
of each pump within the tandem setup. Operating beyond these
specifications can result in decreased efficiency, increased wear,
and potential pump failure.
