Hydraulic Pump for Variable Displacement Axial Piston Pump
Structure
Product Description:

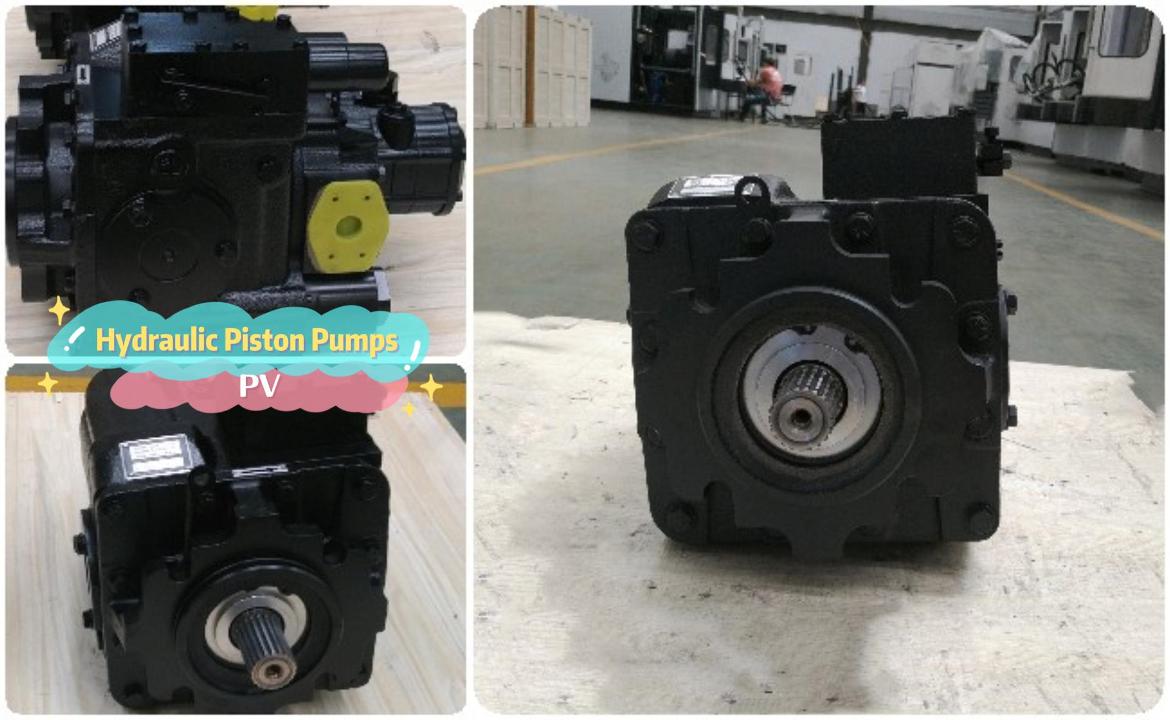

Product Overview: Hydraulic Piston Pumps
The Hydraulic Piston Pumps are a type of high pressure piston pump
designed for use in construction machinery, agricultural
harvesters, and tractors. They are an essential component in
hydraulic transmission systems, providing reliable and efficient
power source for various heavy-duty equipment.
The Hydraulic Piston Pumps are known for their superior performance
and durability, making them the top choice for industries that
require powerful and efficient hydraulic systems. They are designed
to withstand high pressures of up to 42Mpa, ensuring smooth and
consistent operation even in the toughest working conditions.
This product is driven by hydraulic power, making it a reliable and
cost-effective solution for powering heavy machinery. With its
compact design and easy installation, the Hydraulic Piston Pumps
are a convenient option for any construction or agricultural
equipment.
The Hydraulic Piston Pumps are available in a sleek and
professional black color, adding a touch of sophistication to any
equipment it is used on. It is also designed for easy maintenance,
ensuring quick and hassle-free repairs or replacements if needed.
Key Features:
- High pressure piston pump for sale
- Hydraulic piston pump for efficient power source
- Suitable for construction machinery, agricultural harvesters, and
tractors
- Maximum pressure capacity of 42Mpa
- Powered by hydraulic transmission principle
- Compact design for easy installation
- Durable and reliable for heavy-duty use
- Available in a sleek black color
- Easy maintenance for quick repairs or replacements
Features:
- Product Name: Hydraulic Piston Pumps
- Warranty: 1 Year
- Max Pressure: 42Mpa
- Hydraulic System: Closed Loop Axial Hydraulic Pump
- Type: Hydraulic Piston Pump
- High quality hydraulic pump
- Piston pump for sale
- Piston hydraulic pump
- Axial piston pump
Technical Parameters:
| Product Name | Hydraulic Piston Pumps |
|---|
| Color | Black |
|---|
| Application | Construction Machinery, Agricultural Harvester And Tractor |
|---|
| Max Pressure | 42Mpa |
|---|
| Principle | Hydraulic Transmission |
|---|
| Standard Export Package | Plywood Case |
|---|
| Package | Plywood Case |
|---|
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
|---|
| Warranty | 1 Year |
|---|
| Pressure Range | High Pressure |
|---|
| Structure | Variable Displacement Axial Piston Pump |
|---|
| Key Features | piston pump for sale, High quality hydraulic pump |
|---|
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Hydraulic Piston Pumps - HIGHLAND HPV90
Product Description
The HIGHLAND HPV90 is a high pressure hydraulic piston pump
designed and manufactured by a leading hydraulic pump manufacturer
in CHINA DEZHOU. This patented pump, certified with a patent
certificate, is a reliable and efficient solution for various
applications in the construction machinery, agricultural harvester,
and tractor industries.
Application
The HIGHLAND HPV90 is suitable for use in a wide range of
construction machinery, such as excavators, loaders, bulldozers,
and cranes. It is also commonly used in agricultural equipment,
including harvesters and tractors. Its high pressure range makes it
ideal for heavy-duty tasks, making it a popular choice among
contractors and farmers alike.
Why Choose HIGHLAND HPV90?
The HIGHLAND HPV90 offers numerous benefits, making it a top choice
for hydraulic piston pumps:
- High pressure range for heavy-duty tasks
- Efficient hydraulic transmission principle
- Reliable and durable design
- 1 year warranty for peace of mind
- Certified with a patent certificate for quality assurance
- Suitable for various applications in construction and agriculture
- Easy to install and use
- Competitive price for cost-effectiveness
- Fast delivery time to meet project deadlines
- Flexible payment terms
- High supply ability to meet demand
Order Your HIGHLAND HPV90 Today
Don't settle for less when it comes to hydraulic piston pumps.
Choose the HIGHLAND HPV90 and experience the difference it can make
in your construction or agricultural projects. Contact us today to
place your order and see the power of our hydraulic pump in action!
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HIGHLAND. - Q: What is the model number of this product?
A: The model number of this product is HPV90. - Q: Where is this product manufactured?
A: This product is manufactured in CHINA DEZHOU. - Q: Does this product have any certifications?
A: Yes, this product has a PATENT CERTIFICATE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets.
Tags: piston pump for sale, piston hydraulic pump, axial piston
pump
