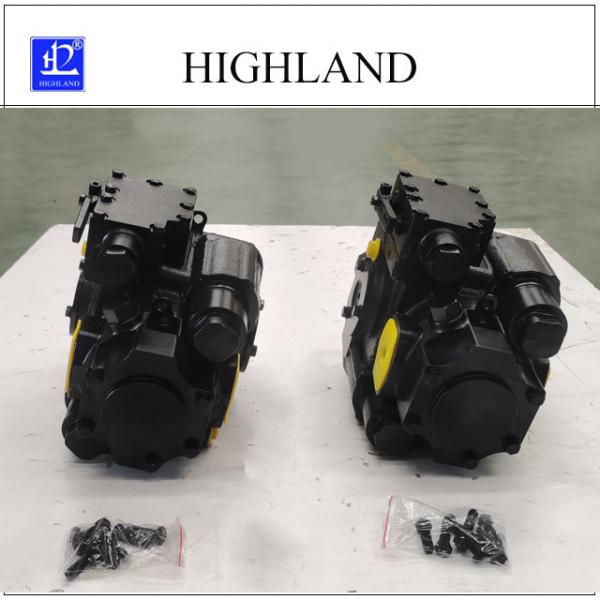

Highland Hydraulic Piston Plunger Pump Type High Pressure For Sale
Highland High Pressure Piston Plunger Pump Type Type For Sale
Piston plunger pump product information:
Highland brand can provide hydraulic piston plunger pump and
hydraulic motor assembly and hydraulic system with high quality,
high-performance parameters. Plunger pump is the variable one that
is with charge Pump, and the motor the quantitative, or variable
one with valve assembly. The control way of variable displacement
pump and motor can be manual or hydraulic operated, and can simply
control speed, direction and power of the output shaft of hydraulic
motor. It is widely used in agricultural machinery, engineering
machinery, mining machinery, aviation and transport hydraulic
engineering machinery and other equipment.
Main Features of piston pump high pressure:
1. Axial variable displacement hydraulic piston pumps.
2. Axial piston pumps have swash plate structure.
3. Hydraulic piston pumps are suitable for hydrostatic
transmissions with closed-loop circuit.
Hydraulic piston pumps technical specification:
HPV Series Technical parameter |
HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
Rated speed | r/min | 2500 |
Min continuous working speed | r/min | 500 |
Pressure | Rated working pressure | Mpa | 35 |
Max working pressure (transient) | Mpa | 42 |
Continuous working pressure | Mpa | 30 |
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
Temperature | Allowable shell temperature | ℃ | 80 |
Max working temperature of oil tank | ℃ | 70 |
weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic piston pumps advantages:
Advantages: high pressure resistance, compact structure, high
efficiency, and convenient flow adjustment, large transmission
power, wide speed range, long life, but piston pumps have strict
requirements on the cleanliness of the working medium.
Quality service of hydraulic piston pumps:
One to one service, we can provide design and installation
solutions.
Online service for quick response and consultation.
Free service to solve difficulty after-sales problems.
FAQ of variable displacement hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and
sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report
can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with 20 years experience in hydraulic
industry for oversea and domestic markets.
Tags: piston plunger pump, piston pump type, piston pump high
pressure
