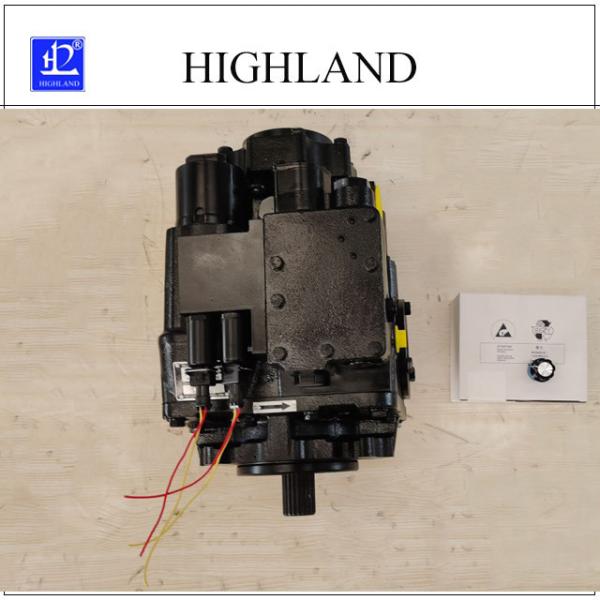

Highland High Quality Hydraulic Piston Pump Plunger Pump For Sale
Hydraulic Piston Pump Plunger Pump introduction:
HPV90 with 90cc/r displacement hydraulic piston pump is an
important part in the transit mixer truck or harvester hydraulic
system. Our hydraulic plunger pumps are variable displacement
plunger type, have the advantages of high rated pressure, compact
structure, high efficiency and convenient flow adjustment. They are
widely used in occasions where high pressure, large flow and flow
need to be adjusted.
Hydraulic Piston Pump Plunger Pump features:
Hydraulic piston pump plunger pump are well engineered and easy to
handle.
Bearings of hydraulic piston pumps are all tapered roller bearing,
which can load heavy external axial forces.
When hydraulic axial flow piston pumps operated mechanically, the
servo displacement can control and keep the angle of swash plate
and pump displacement, variable displacement hydraulic pumps.
Upon release of the control handle, swash plate of hydraulic piston
pump return to zero position automatically and the flow reduces to
zero.
HPV90 hydraulic plunger pump technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
HMF series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38
|
High quality hydraulic piston pump plunger pump usage:
Hydraulic piston pumps plunger pumps are mainly used in
construction machinery, agricultural machinery equipment, coal
mining industry, oil exploration, aerospace industry and
shipbuilding industry.
a. hydraulic plunger pumps are widely used in high-pressure,
high-flow, high-power systems and occasions where the flow needs to
be adjusted, such as agricultural machinery, construction
machinery, mining and metallurgical machinery, and ships. It can
play an important role.
b. hydraulic pumps are used in petroleum exploration and
development, petrochemical, pharmaceutical, atomic energy science,
environmental science, process equipment, experimental equipment,
etc.
FAQ of hydraulic plunger pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and
sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report
can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing
hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic
markets. Main business range is hydraulic motor pump system, piston
pumps and motors, welcome to visit our factory in Dezhou city
Shandong province.
